轻盈精致是意大利和丹麦设计师二人组GamFratesi的典型风格,Raphael沙发座椅系列由此诞生,精致的定制剪裁工艺让每一款作品都能成为空间的主角,同时拥有可以媲美传统组合式家具的舒适度,继而创造出一种构建生活空间的新方式。

三款沙发、四款扶手椅、两款餐椅、两款脚凳的设计旨在适应较小的家居空间,同时满足装饰设计师和室内设计师的高要求。生动有机的造型,宽大温馨的比例,再加上精致的软垫,巧妙地勾勒出其独特的优美线条。

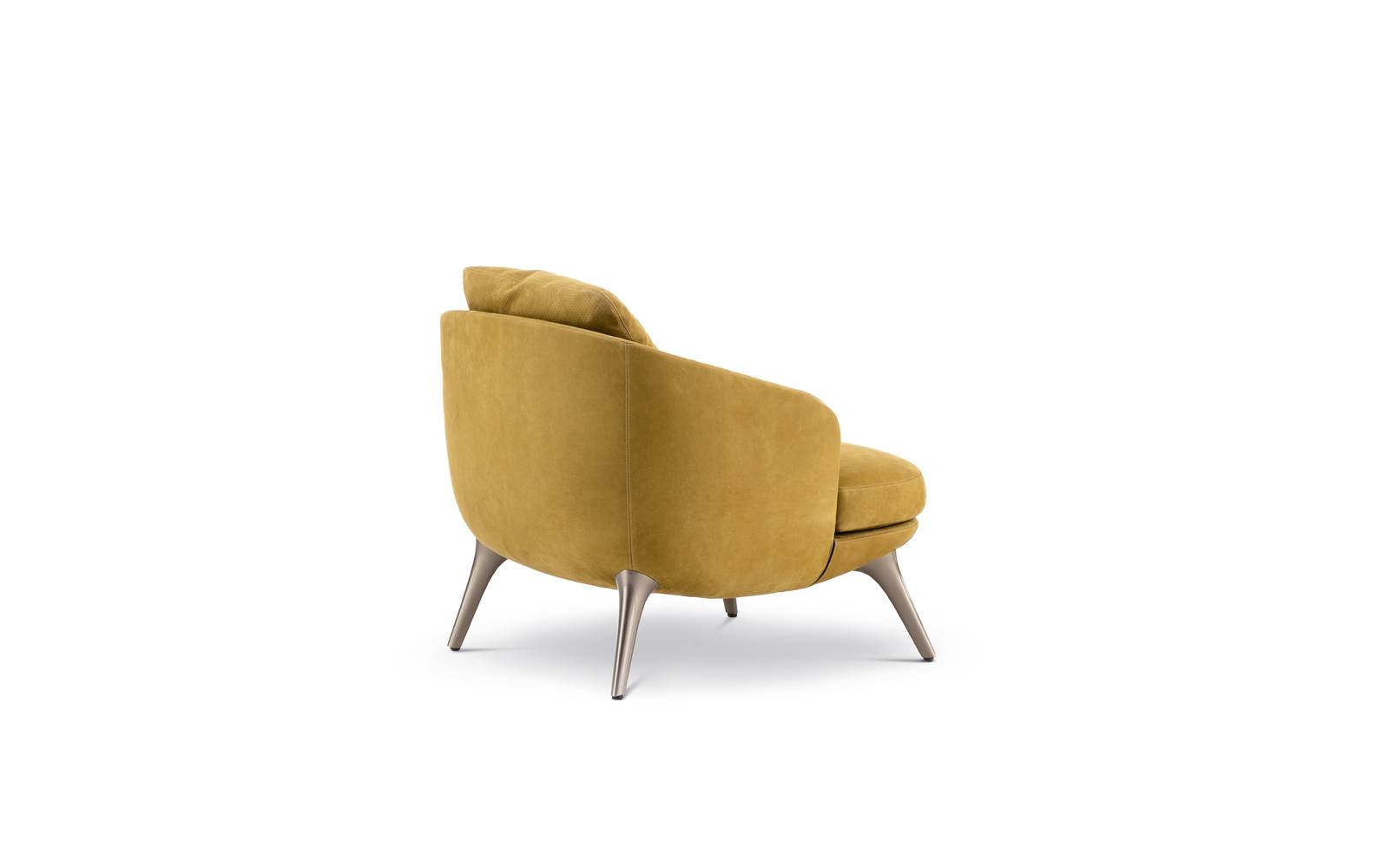

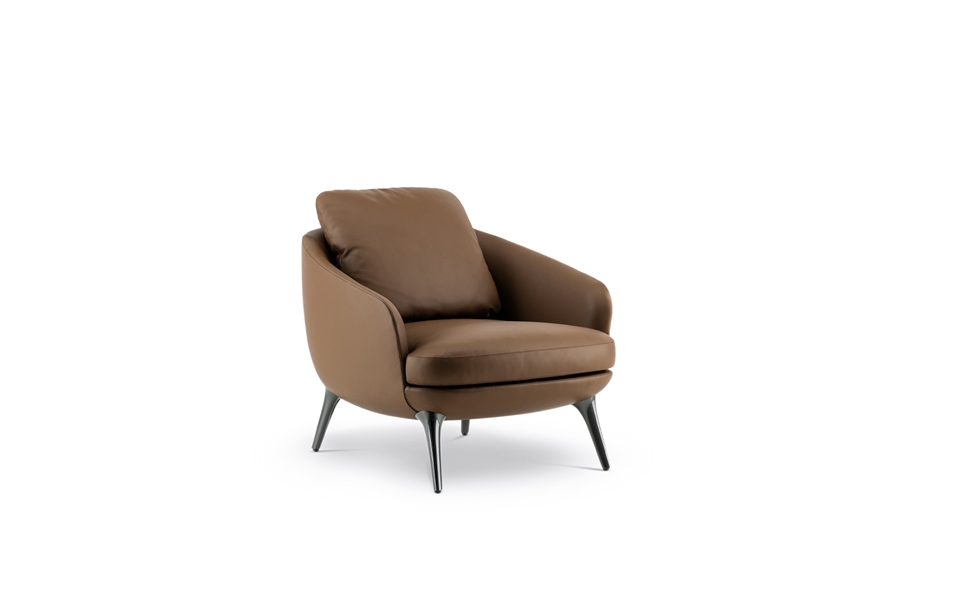

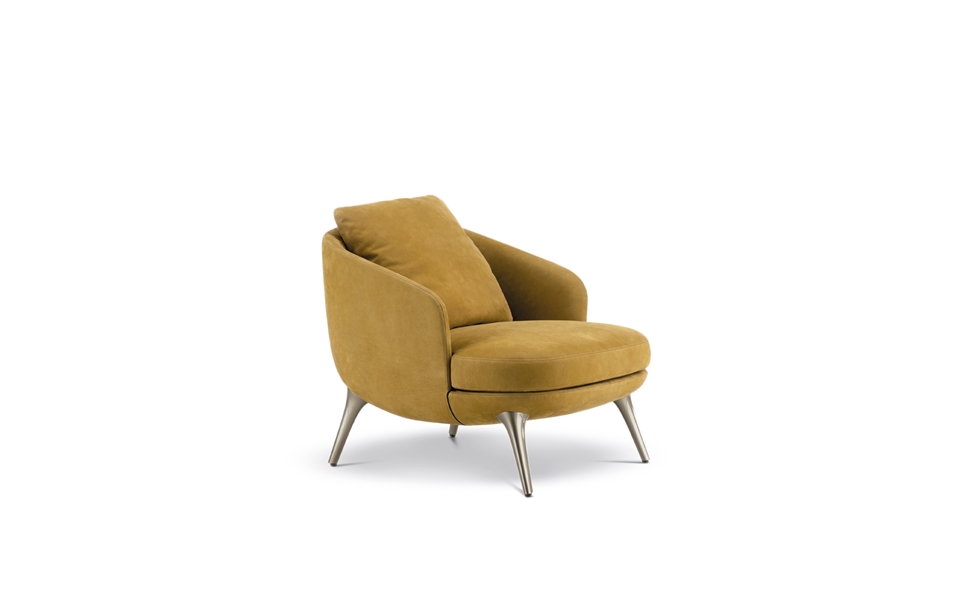

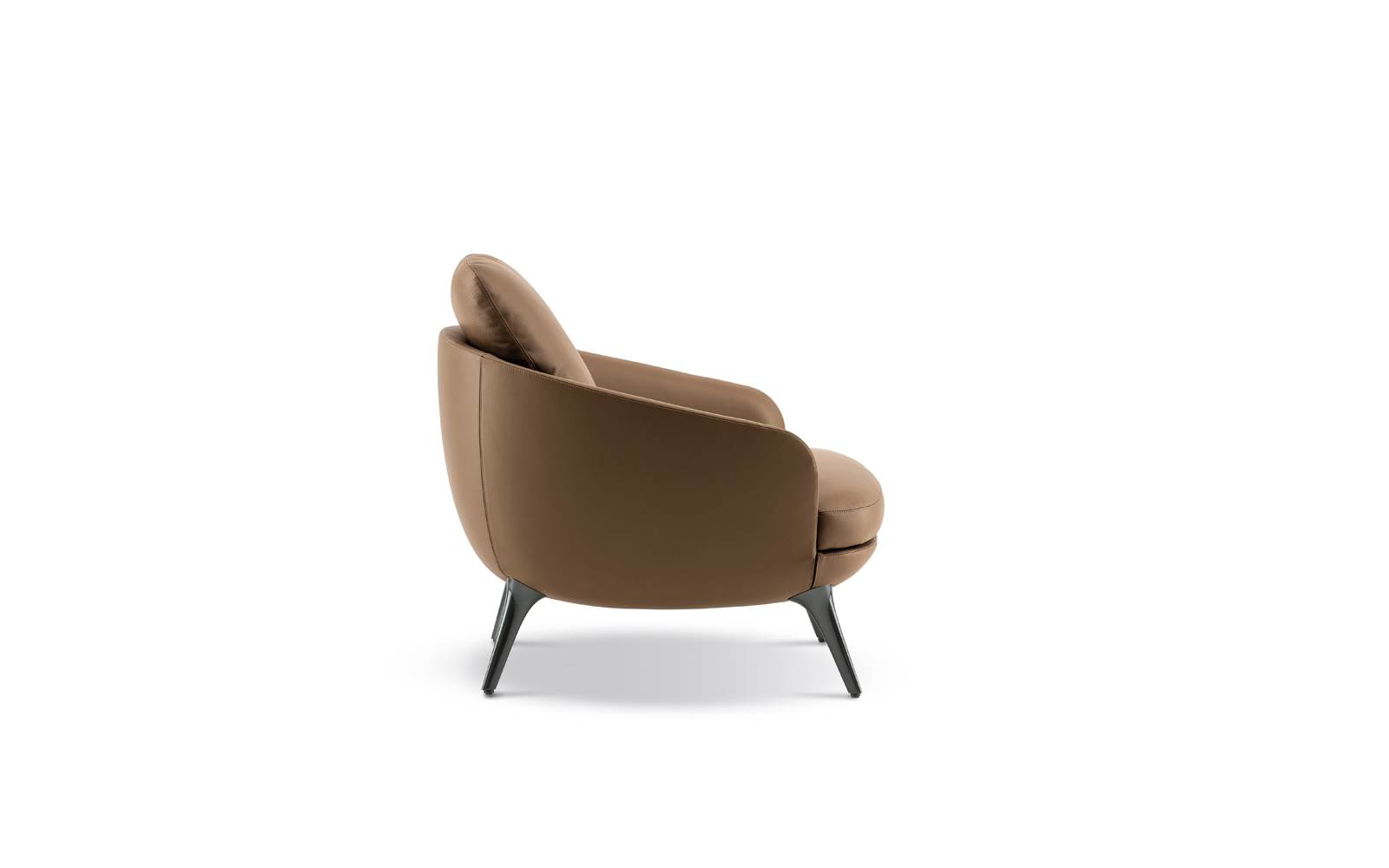

Raphael沙发和扶手椅的支撑腿充满现代感,材质不仅有铜色和亮光锡色的压铸铝可供选择,还可以选用灰褐色的染色白蜡木,设计方案与座椅的外观造型相得益彰。该系列的家具以现代手法重新演绎经典造型。扶手椅还提供旋转版本,压铸铝材质的四辐基座有铜色和亮光锡色可供选择。

这一产品家族中的每个成员都有其独特的轮廓和个性。沙发有三种款式:直线形、半弧形、不对称半弧形,后者通过靠背的优美线条以及柔和的高度变化,营造出生动的效果。温馨舒适的扶手椅不仅提供大尺寸和小尺寸的版本,还有餐椅款可供选择,值得一提是,固定式餐椅的支撑腿为灰褐色白蜡木,旋转式餐椅则采用压铸铝材质的四辐基座,颜色有铜色和亮光锡色可供选择。

Raphael系列的细节、造型和整体美感使其成为永恒而现代的家具作品,可以满足日常生活中不同场景的需要,无论是放松时刻还是欢聚时光,无论是酒店环境还是温馨的家居空间,皆可应对自如。

Technical Features

Structure
In metal coated in fire-resistant polyurethane foam and encased in breathable heat-bonded fibre laminated to white hypoallergenic cotton fabric to lend extra softness. Seat suspension provided by high-rubber-content elastic webbing. Two zippers located under the seat where the belt ends meet facilitate removal of the upholstery.
Cushions
Seat and backrest cushions in channelled goose down undergo routine sanitization as specified in EC Regulation No. 1069/2009 (Assopiuma certified, Gold Label). Insert in high resilience, variable-density polyurethane foam and, in the upper part, temperaturesensitive polyurethane material. Then the seat cushion is encased in breathable heat-bonded fibre laminated to white hypoallergenic cotton fabric.
Covers
Upholstery for cushions and frame is completely removable in all versions (fabric and leather).
In cast-aluminium with varnished polished anti-fingerprint Bronze or Pewter colour finish; also available in solid ash with kiln-dried open-pore licorice colour lacquer finish. Crafted on CNC machines. Equipped with black protective felt slides or black polyethylene glides.

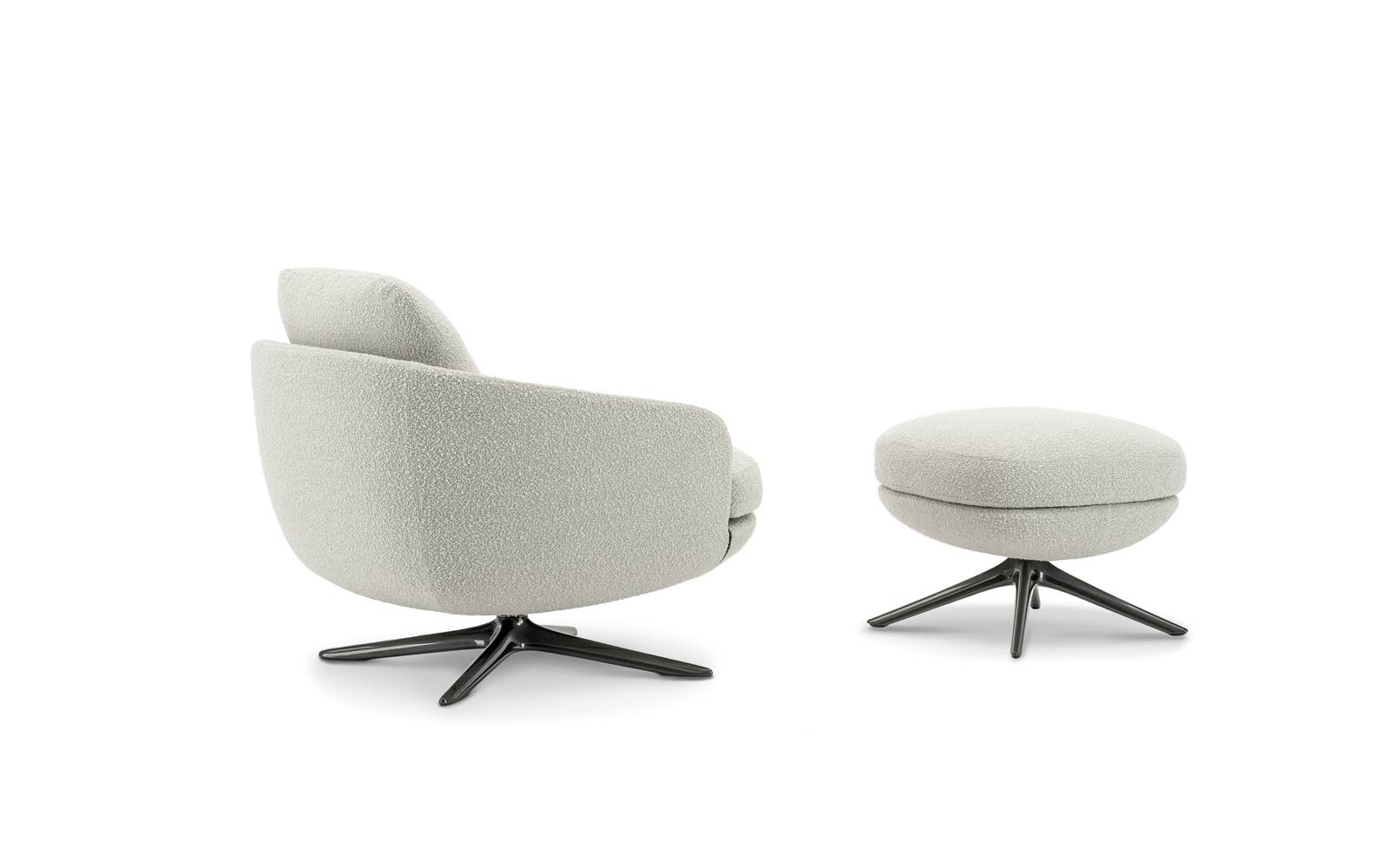

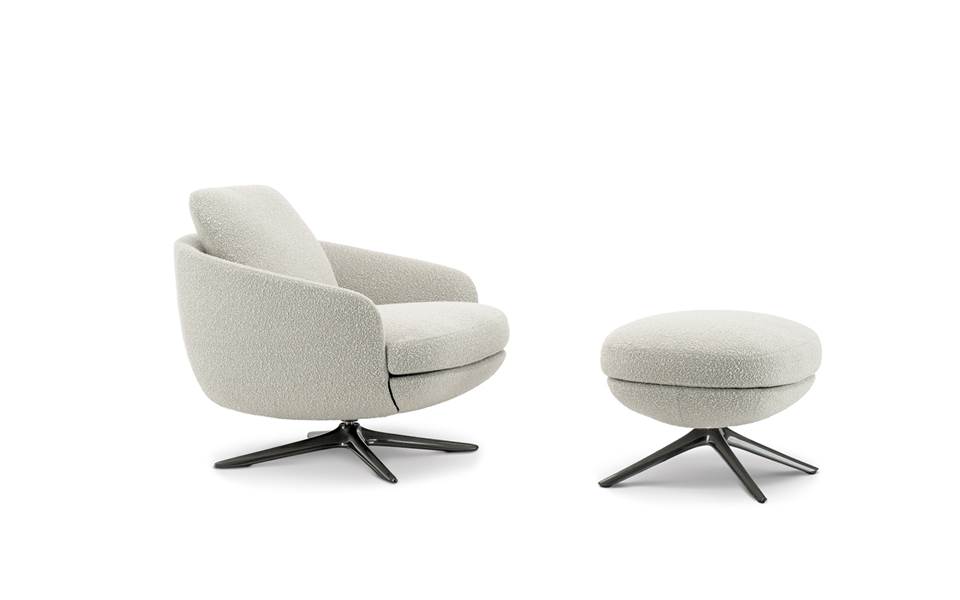

Swivel base - armchairs
In cast aluminium varnished polished Pewter or Bronze colour with anti-fingerprint finish, 360° swivel movement with return. Equipped with black polyethylene glides.
Base - footstool
In cast aluminium varnished polished Pewter or Bronze colour with anti-fingerprint finish. Equipped with black polyethylene glides.
DINING LITTLE ARMCHAIR
Structure: in aluminium coated in fire-resistant polyurethane foam and covered in heat-bonded fibre laminated to white hypoallergenic cotton fabric to lend extra softness. Seat with mattress pad in high-resilience variable-density polyurethane foam covered with synthetic hypoallergenic fibre. Two zippers located under the seat where the belt ends meet facilitate removal of the upholstery.
Cushions: seat cushion in high-resilience, variable-density polyurethane foam, then encased in breathable fibre laminated to white hypoallergenic cotton fabric.
Covers: upholstery for cushions and frame is completely removable in all versions (fabric and leather).
Legs: in solid ash with kiln-dried open-pore Licorice colour lacquer finish. Crafted on CNC machines. The wood legs are attached to a metal frame varnished polished Pewter colour with anti-fingerprint finish, fastened to the structure. Equipped with black protective felt slides or black polyethylene glides.
Swivel base: in cast aluminium varnished polished Pewter or Bronze colour with anti-fingerprint finish, 360° swivel movement with return. Equipped with black protective felt slides or black polyethylene glides.

2D 模型

CAD文件中标注的尺寸可能与产品信息表中的尺寸稍有不同。注意:本网站上的CAD文件受到版权保护,归Minotti SpA公司独家所有。公司仅限在室内设计中使用该文件。严禁将其用于其他用途。

3D 模型

CAD文件中标注的尺寸可能与产品信息表中的尺寸稍有不同。注意:本网站上的CAD文件受到版权保护,归Minotti SpA公司独家所有。公司仅限在室内设计中使用该文件。严禁将其用于其他用途。
