Torii Bold

Torii Bold

Torii Bold

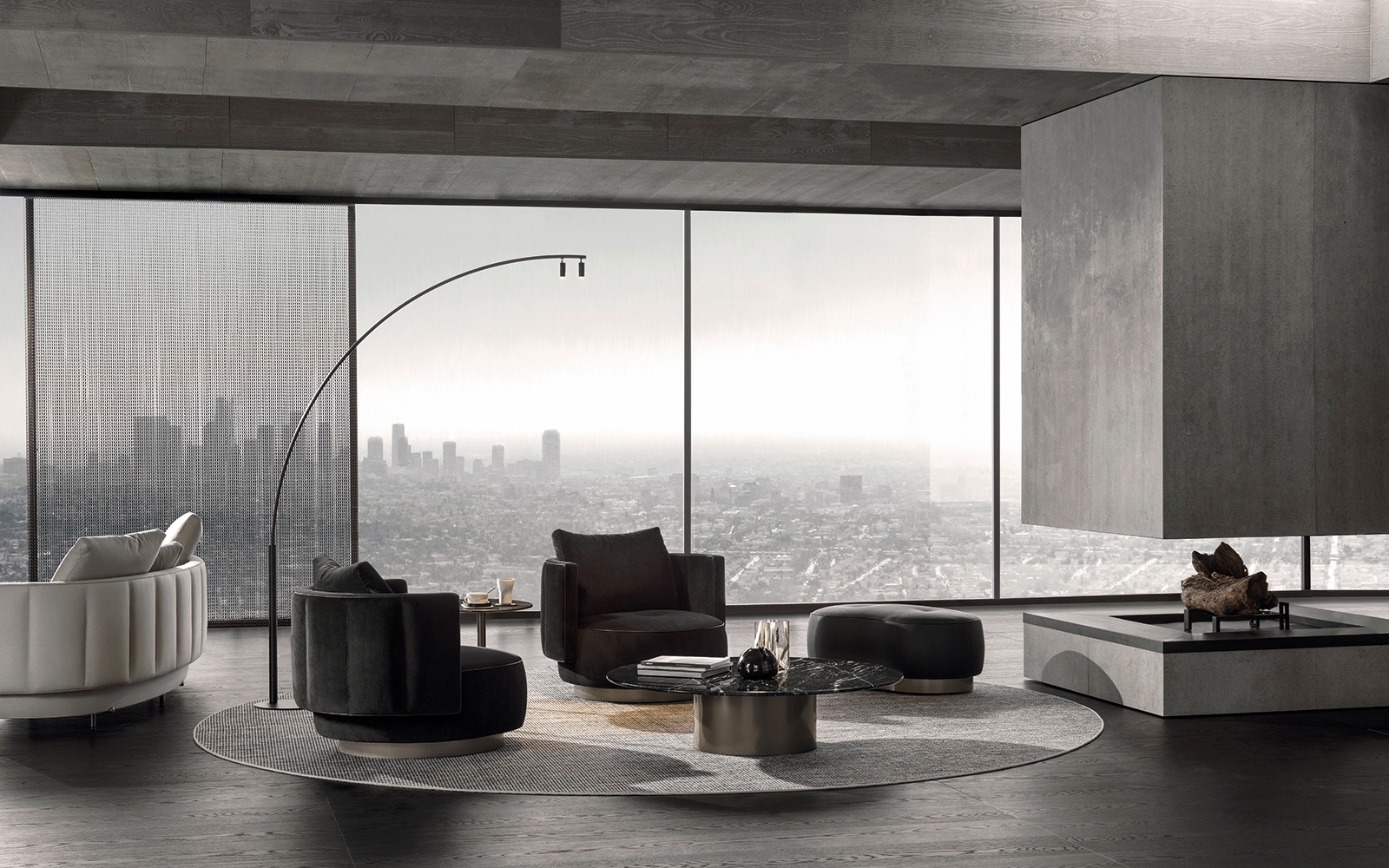

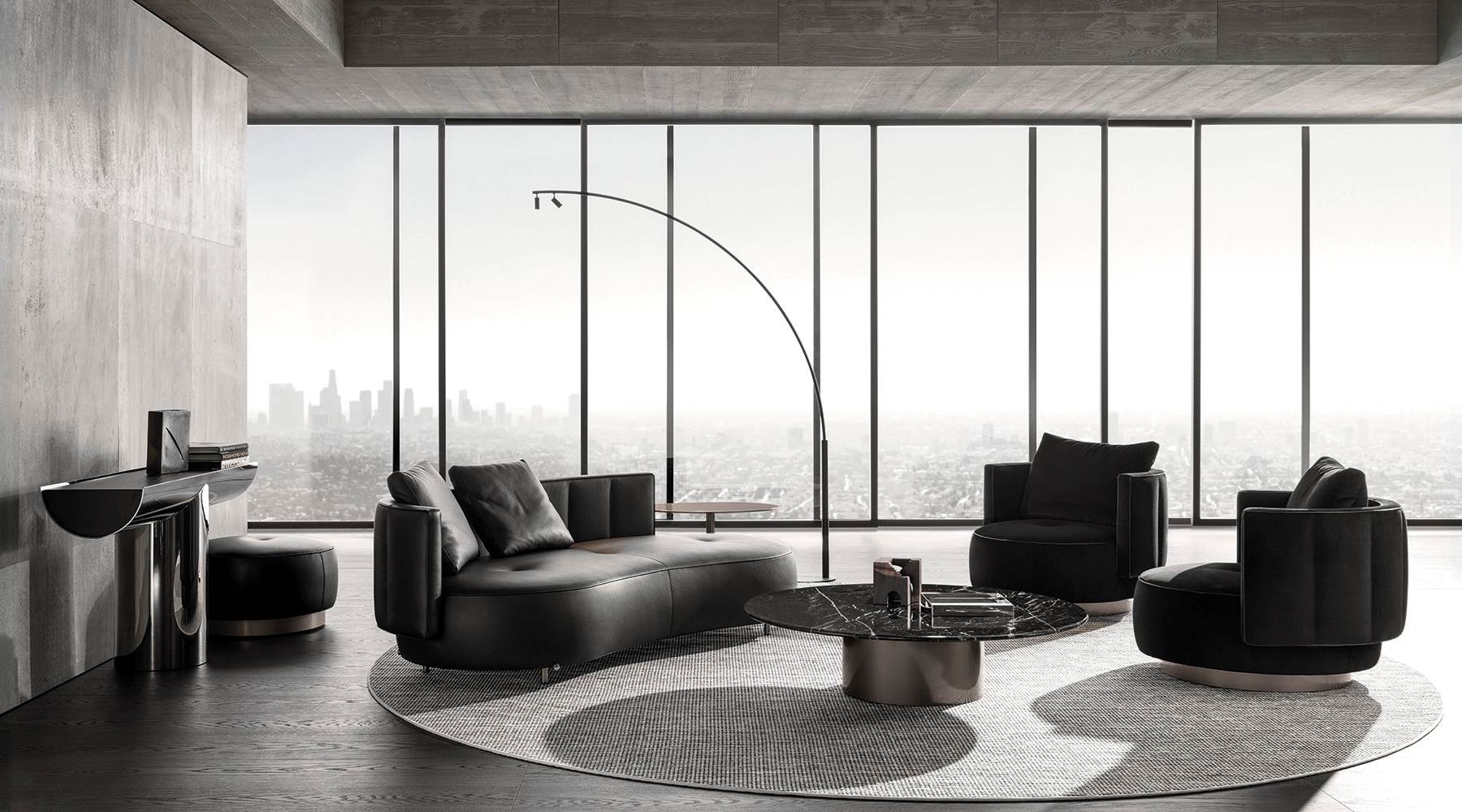

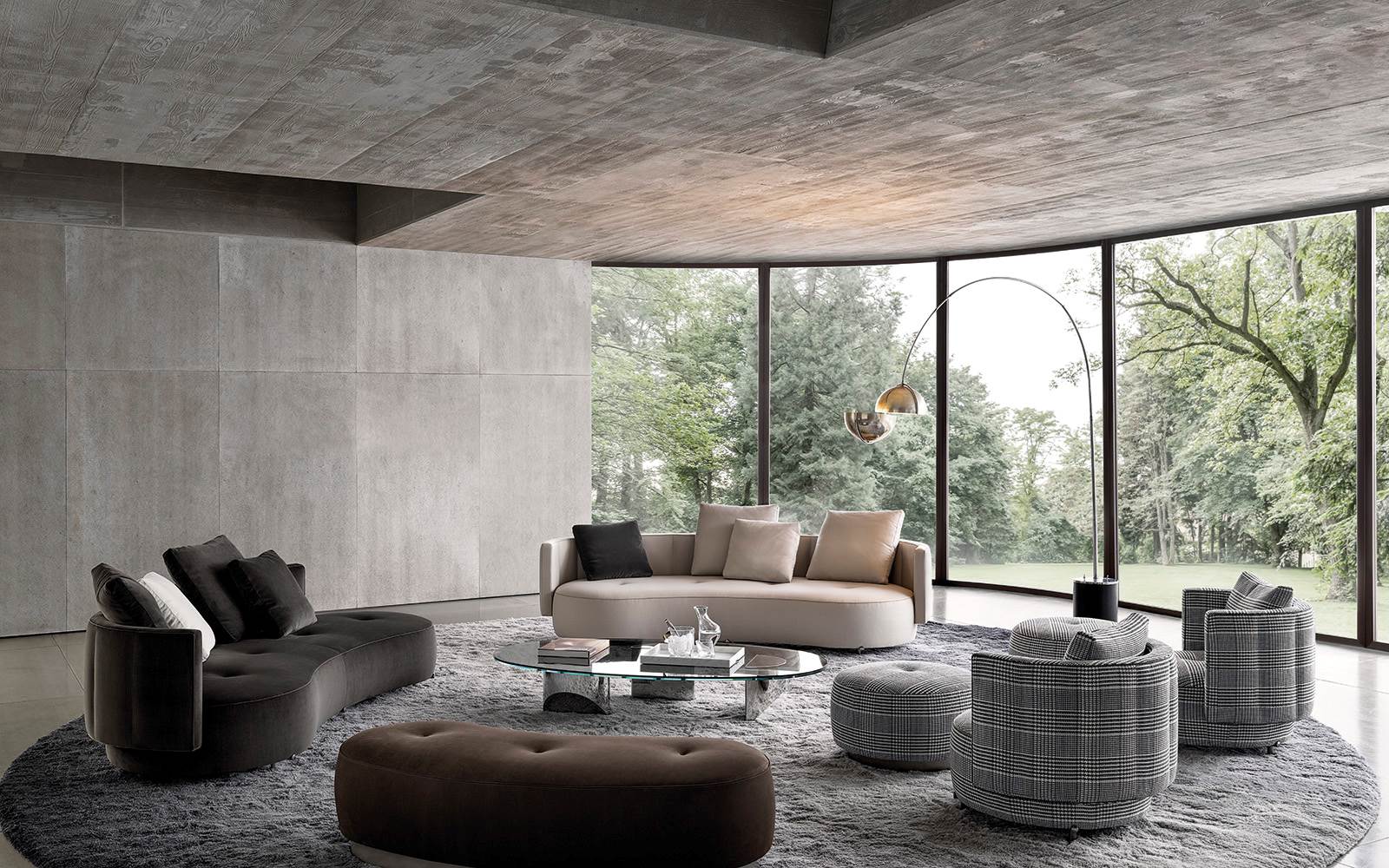

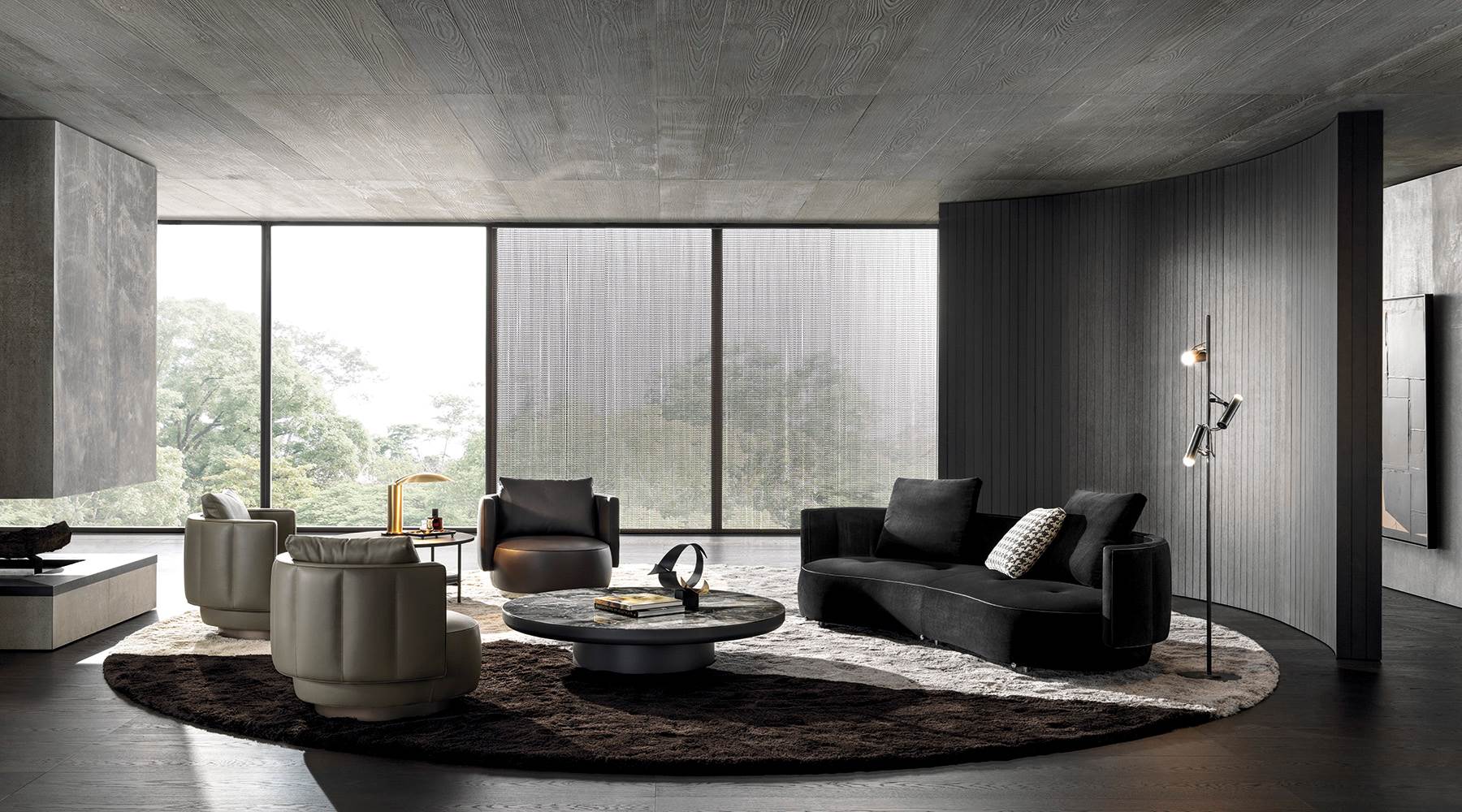

Torii Bold se caracteriza por el contraste entre los grandes volúmenes suavemente redondeados de las piezas tapizadas y la ligereza de la estructura metálica de la base sobre la que descansan.

Una familia de asientos que, partiendo del diseño original del icónico Torii del estudio Nendo, mantiene inalterada la morfología del respaldo, pero presenta una estética más sólida y compacta: las dos familias dialogan armoniosamente entre sí en un hábil juego de volúmenes llenos y vacíos.

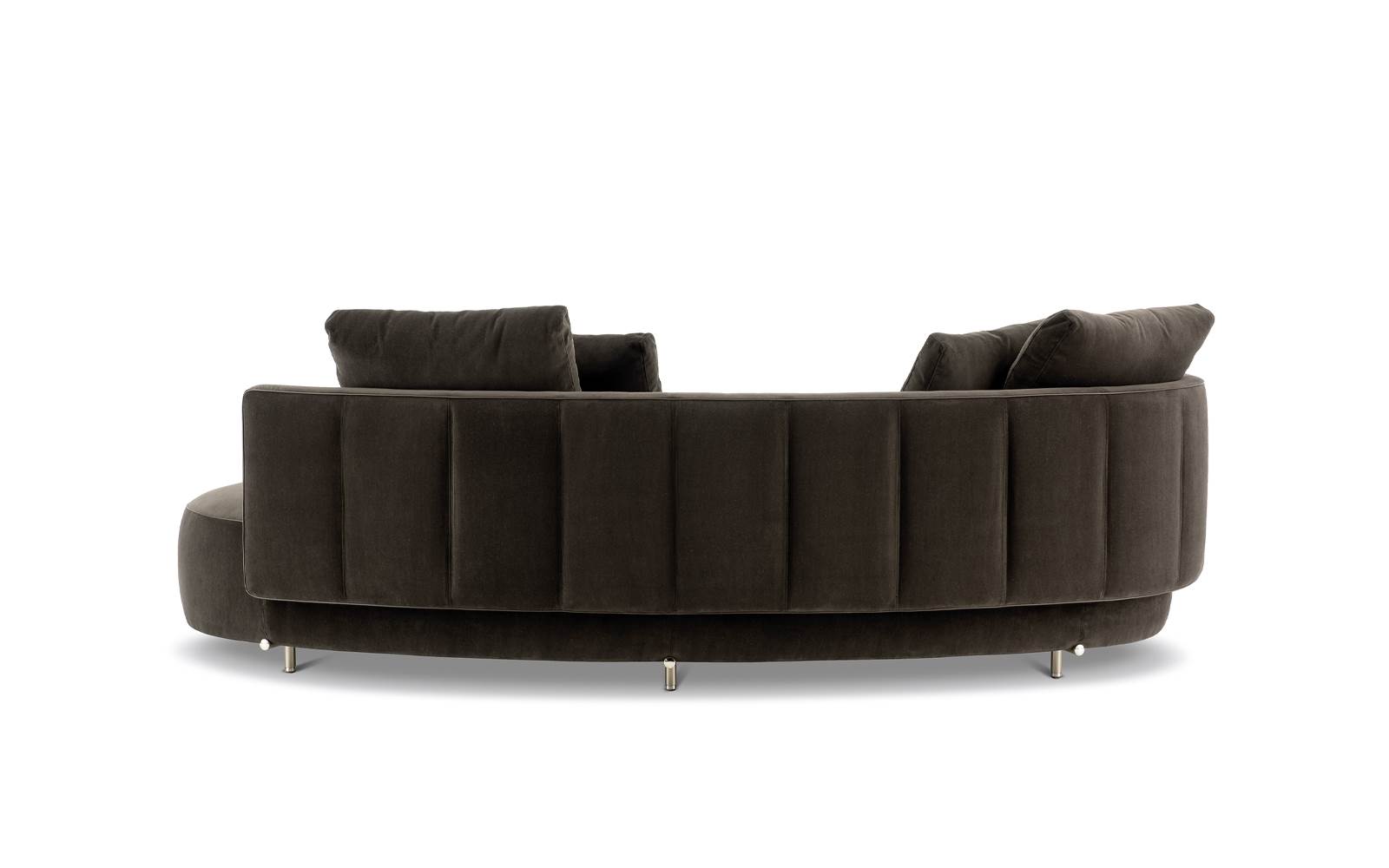

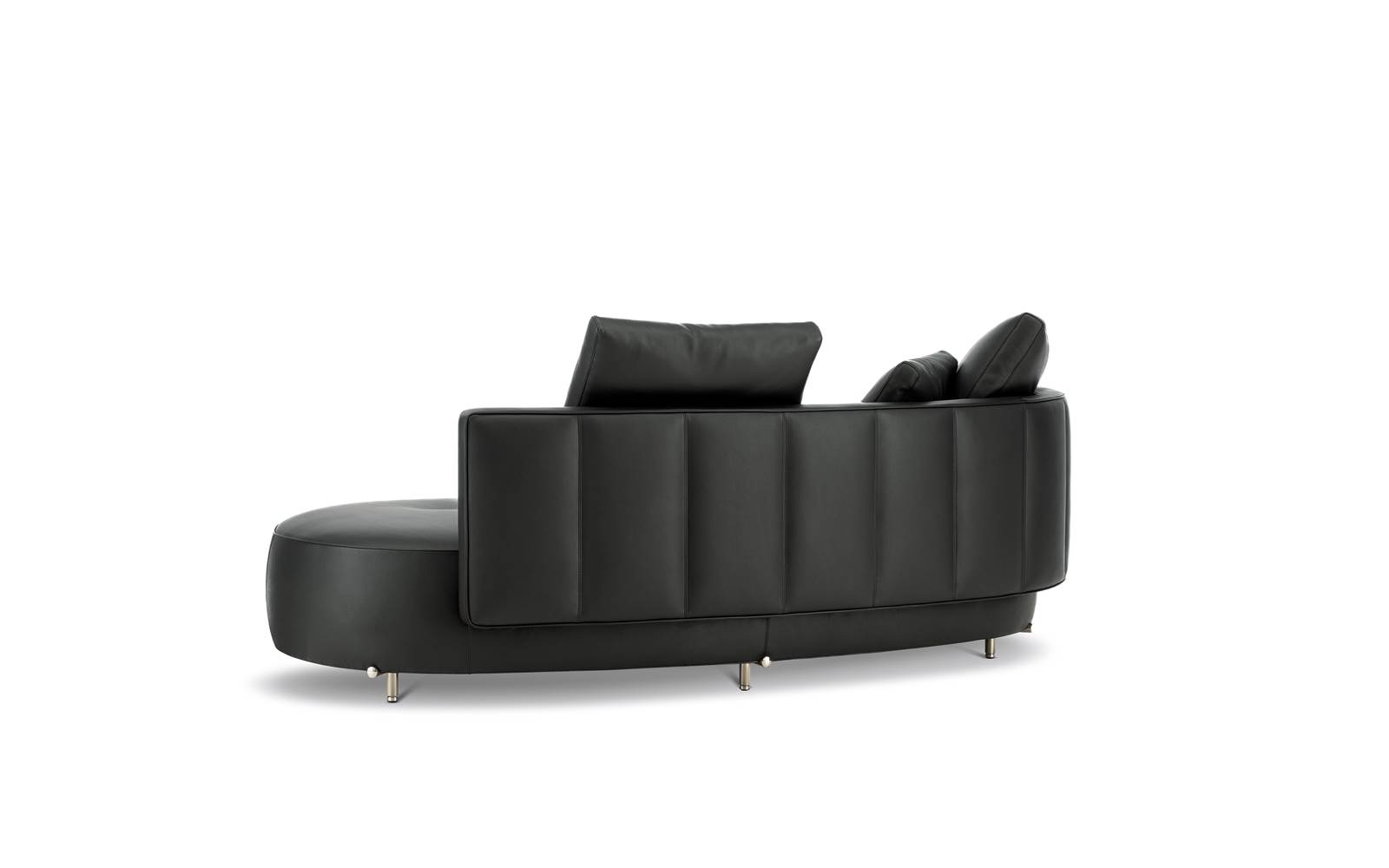

El esbelto respaldo está marcado por las líneas verticales del acolchado y por un perfil, en piel sintética o eco-nabuck, que define el perímetro de la tapicería: detalles sartoriales que acentúan el aspecto de alta costura de la confección.

Las patas, adornadas con un pequeño botón joya, mantienen el juego de uniones entre elementos verticales y horizontales inspirado en los detalles de construcción típicos de la tradición japonesa, de la que la familia toma su nombre, y acogen el volumen tapizado de los sofás y sillones.

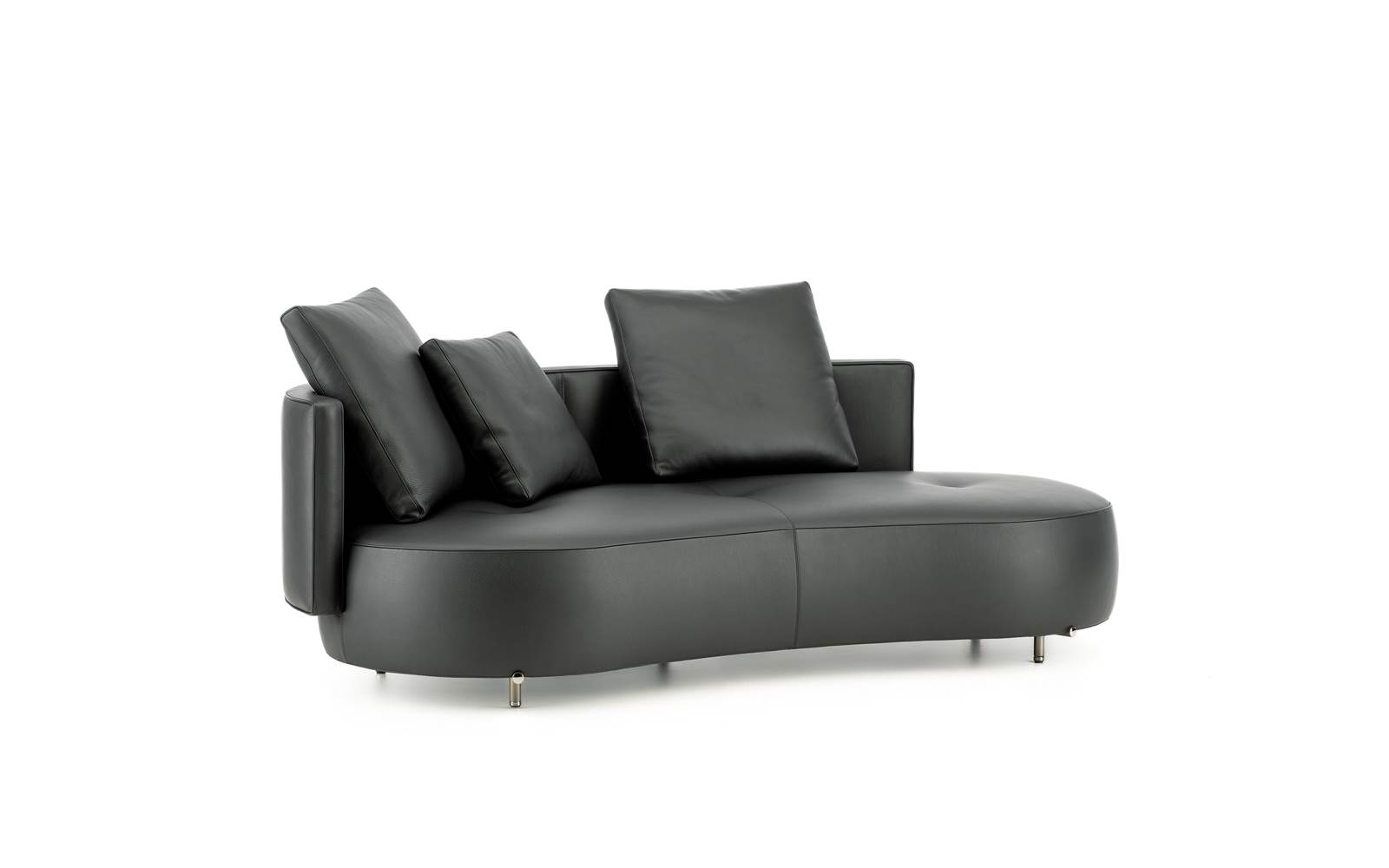

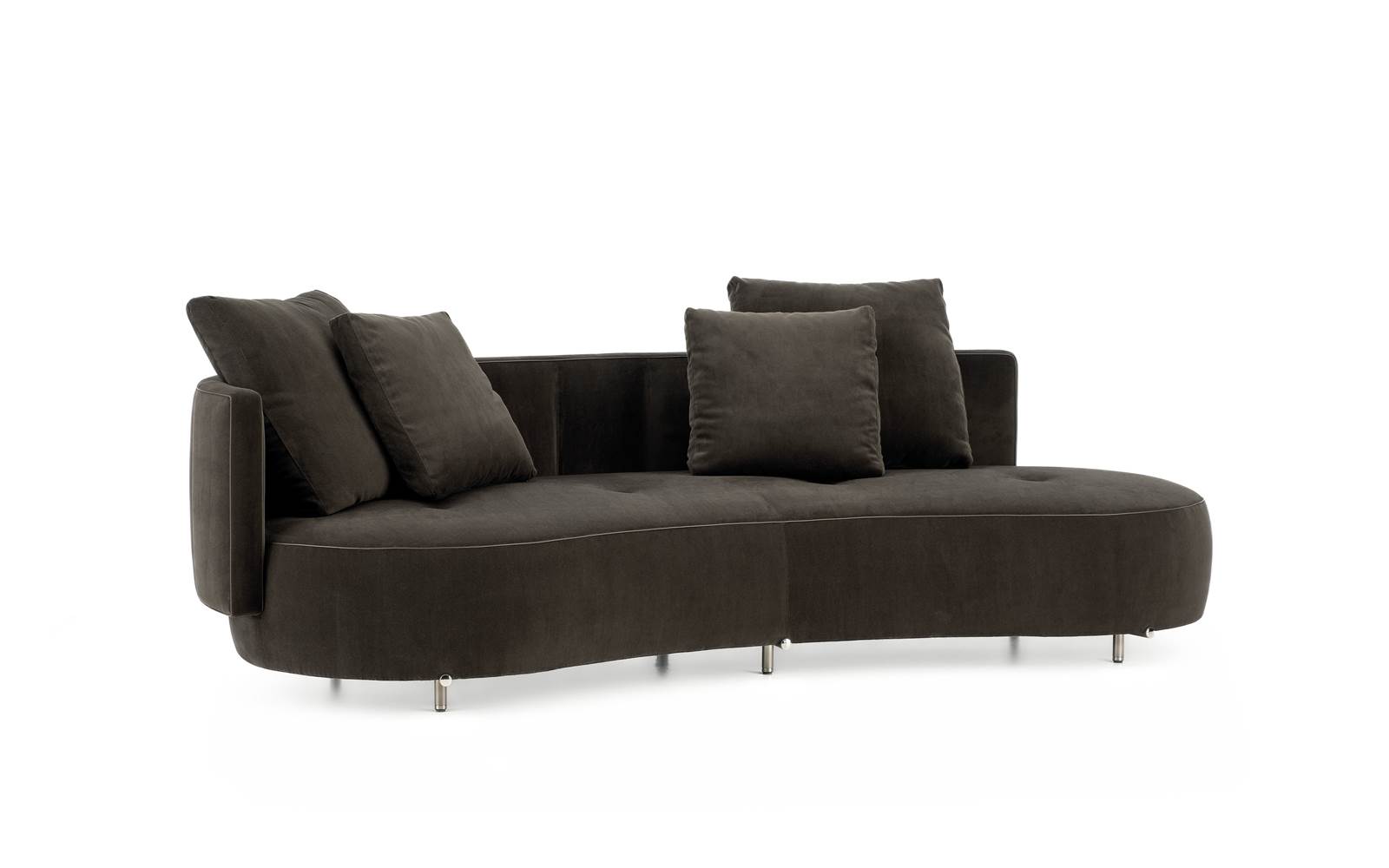

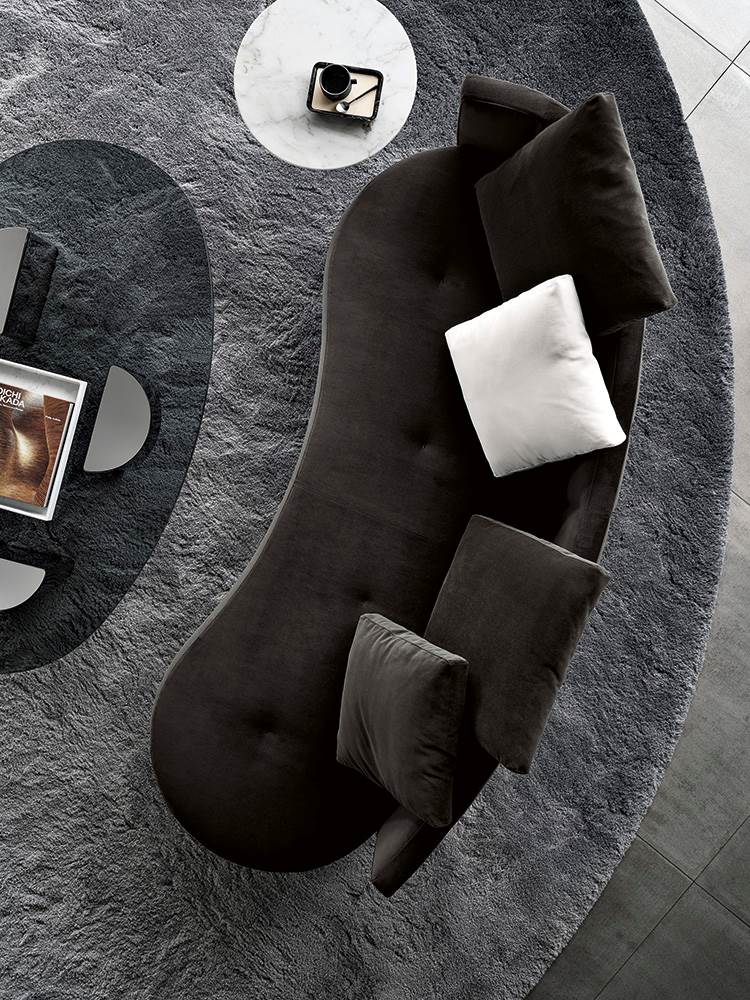

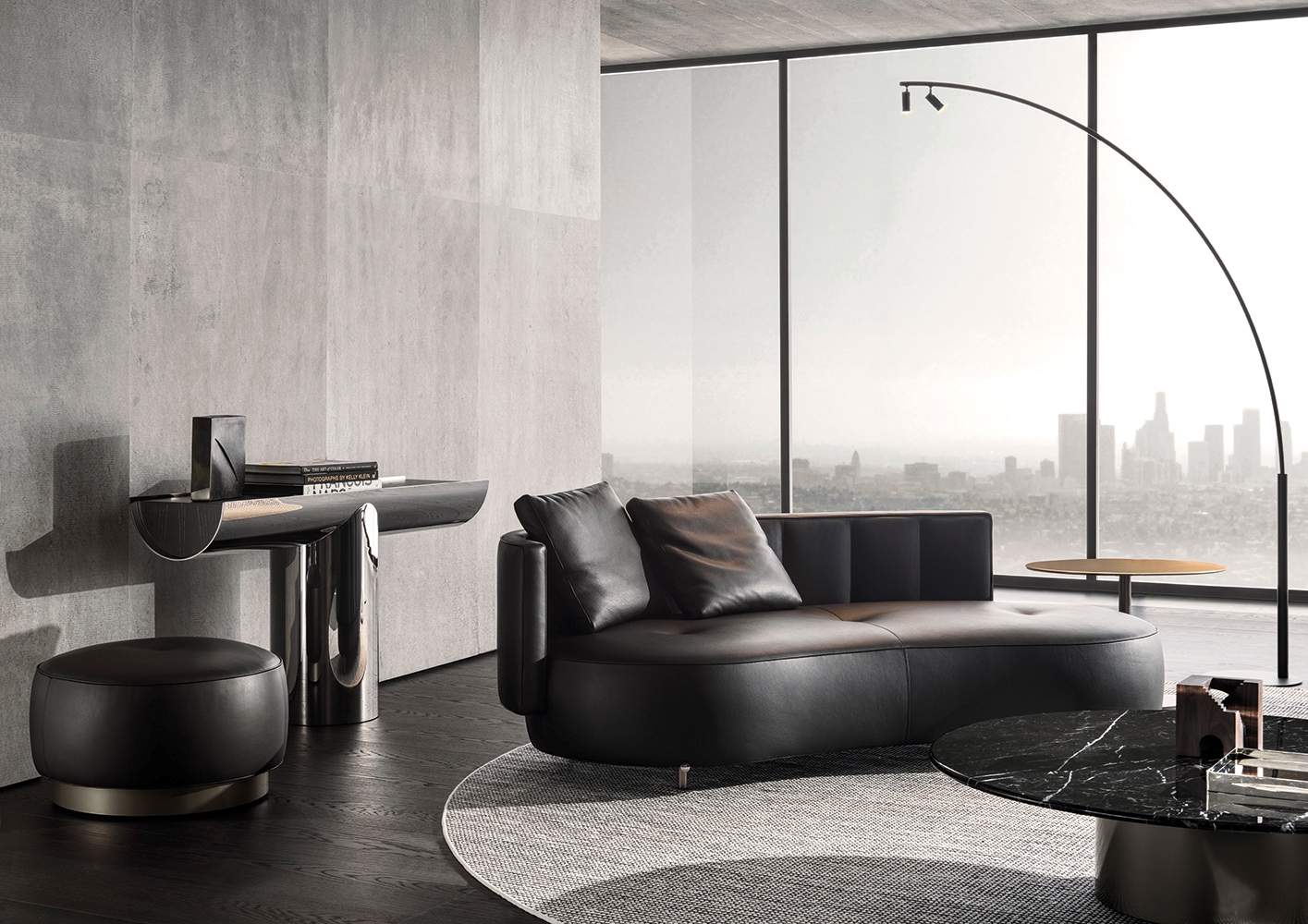

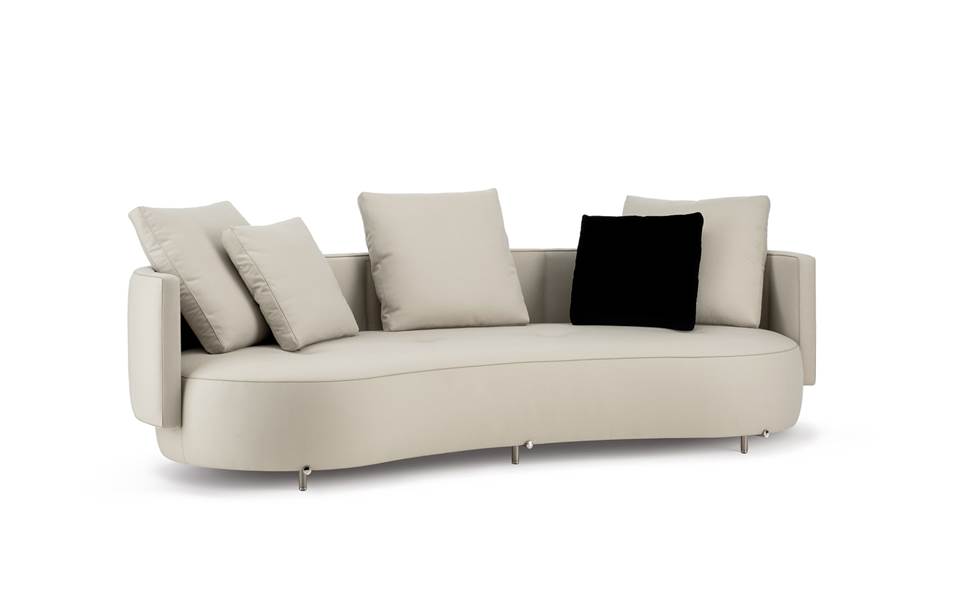

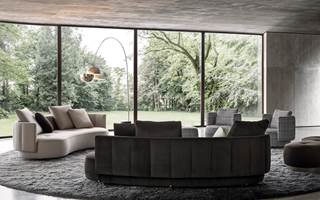

El sofá tiene una silueta suavemente curvada tanto en el tamaño pequeño como en el grande, ambos disponibles también en versión península.

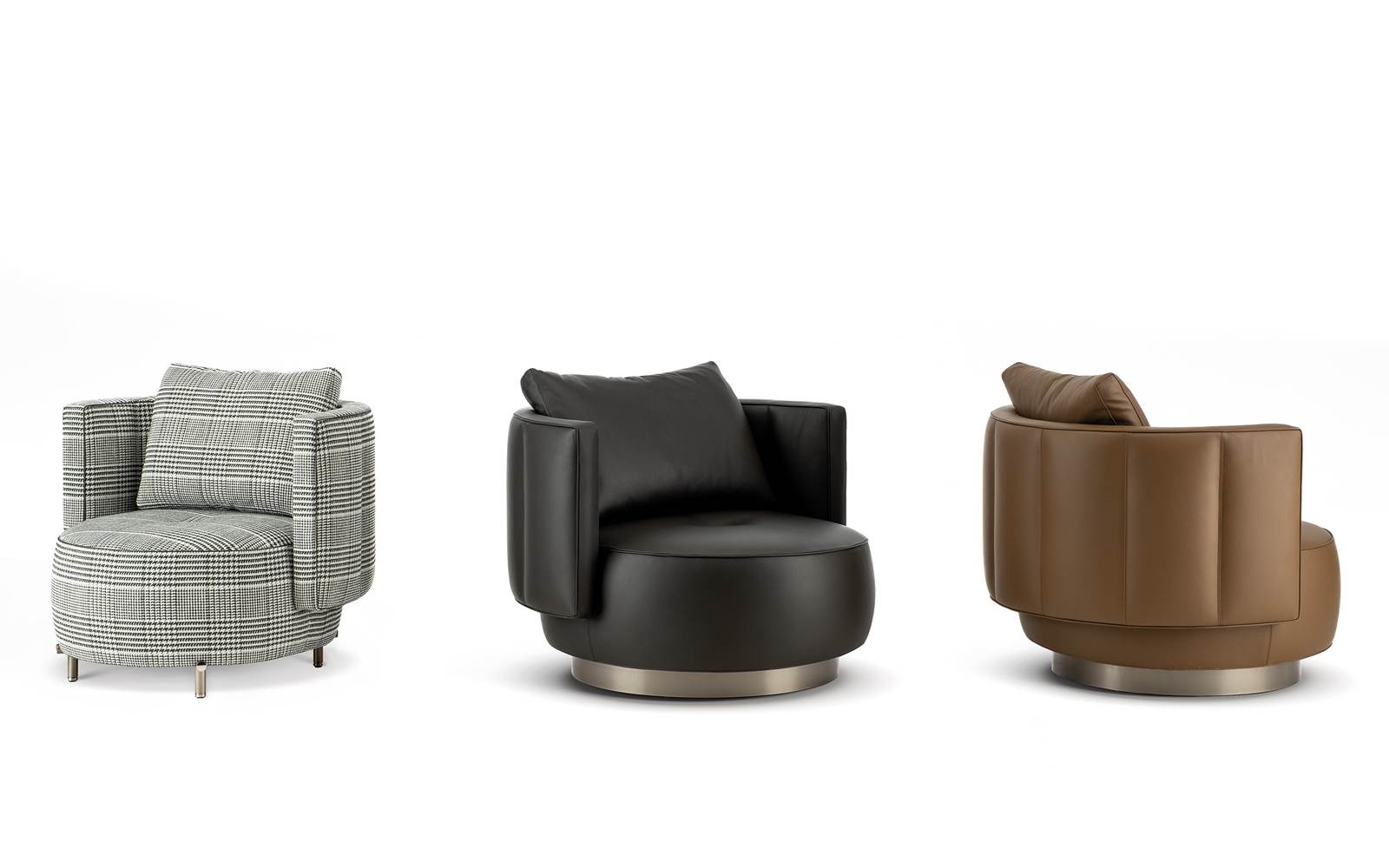

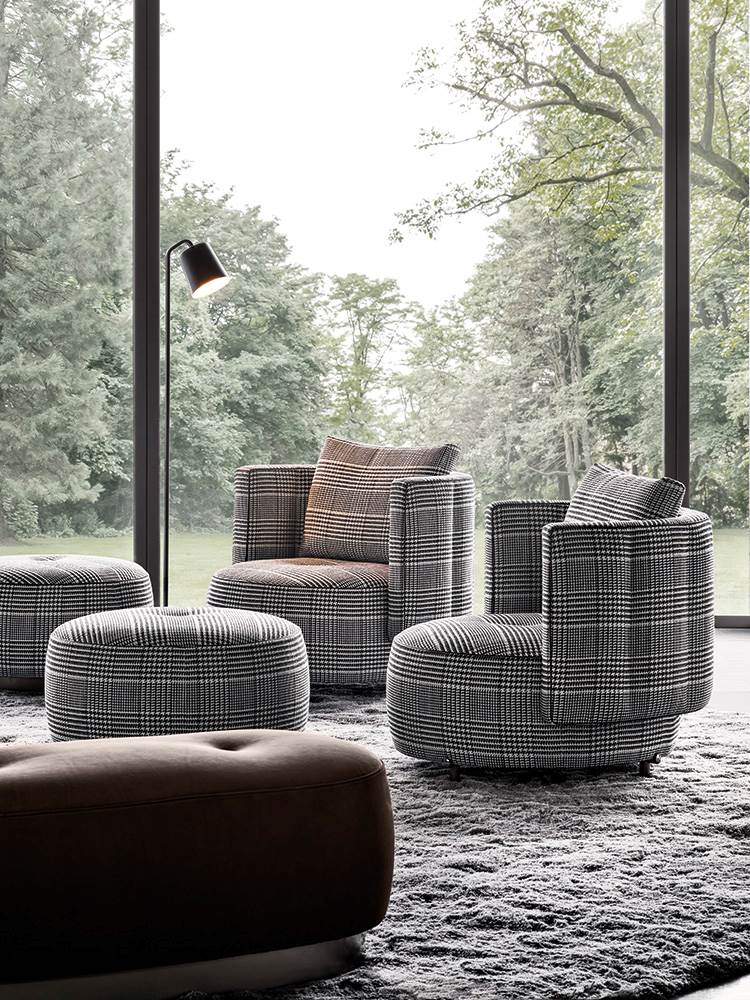

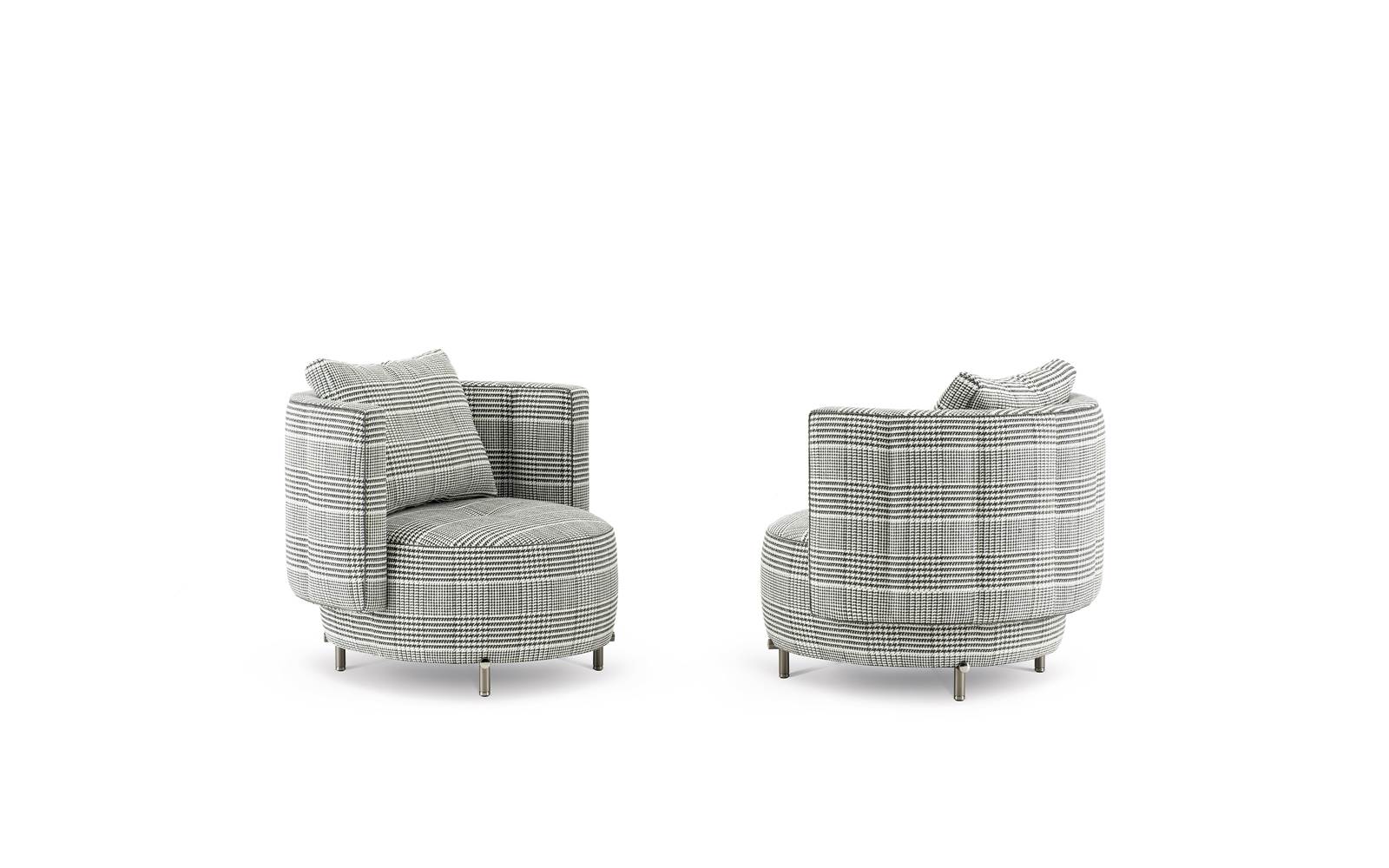

Los sillones, por su parte, están disponibles en versión fija o giratoria, esta última con una base metálica curvada que oculta el mecanismo giratorio. Los pufs, de diferentes formas y tamaños, se hacen eco del diseño de la base del sillón y, al ofrecerse con ruedas para facilitar su desplazamiento, permiten interpretar el salón de una manera más informal.

Technical Features

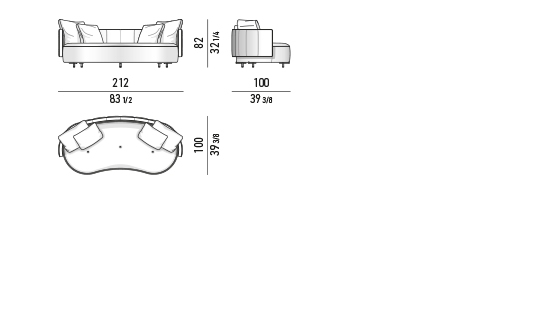

Angled sofa cm 212
Angled sofa cm 247

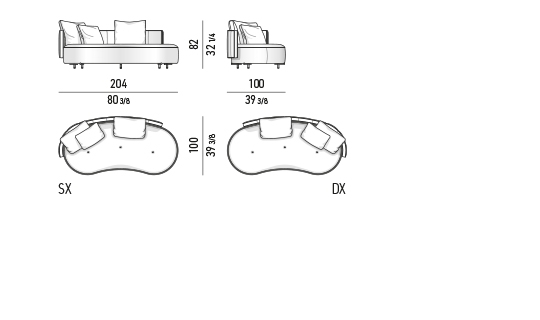

Angled open-end sofa cm 204

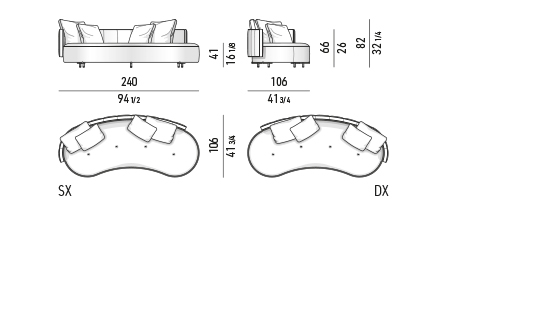

Angled open-end sofa cm 240

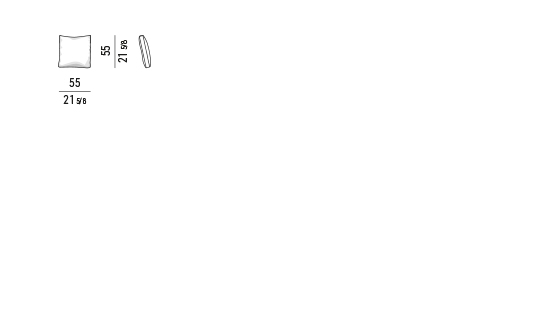

Optional backrest cushion cm 55x55
Optional cushion cm 45x45
Ottoman cm 152x59
Angled ottoman cm 94x56
Angled ottoman cm 152x68
LARGE Armchair cm 94 - FIXED
LARGE Armchair cm 94 - SWIVEL
LARGE Ottoman Ø cm 77
MEDIUM Armchair cm 88 - FIXED
MEDIUM Armchair cm 88 - SWIVEL
MEDIUM Ottoman Ø cm 71
SMALL Armchair cm 82 - FIXED
SMALL Armchair cm 82 - SWIVEL
SMALL Ottoman Ø cm 65
SOFA structure
Seat in plywood of various thicknesses. The structure is coated in high-resilience, variable-density polyurethane foam. Metal backrest coated in high-resilience polyurethane foam, encased in breathable heat-bonded fibre laminated to white, hypoallergenic cotton fabric to lend softness.
ARMCHAIR structure
Seat in plywood of various thicknesses. The structure is coated in high-resilience, variable-density polyurethane foam. Metal backrest coated in flame-resistant polyurethane foam, and then encased in breathable, hypoallergenic laminated fibre for added softness. The backrest/armrest structure and internal casing on sofas and armchairs features a quilted vertical slat pattern finished with double stitching. A piping around the perimeter of the backrest and the seat cushion defines the edge of the upholstery. If the client has not specified the piping colour on the order, the choice will be determined by the company. The piping is made of eco-leather and/or eco-nubuck (a dry-cleanable material) and comes in the following colours: - Eco-Leather: White, Cloud, Sand, Havana, Ice, Chestnut, Peat, Baltic, Burgundy, Smoke, Cast-Iron, Black, Mustard, Cognac, Corten; - Eco-Nabuk: Cloud, Mink, Ice, Moka, Baltic, Burgundy, Moss, Charcoal, Green, Cognac, Corten, Granite, Curry. Seat cushion upholstery features top stitching.
Cushions
Backrest cushion padding in channelled goose down undergoes routine sanitization as specified in EC Regulation No. 1069/2009 (Assopiuma certified, Gold Label) with core insert in high-resilience, variable-density polyurethane foam.
Covers
Structure and backrest cushions are completely removable in all versions (fabric and leather).
Feet
Made of 25 mm Ø solid metal rods, varnished Bronze colour with polished anti-fingerprint finish; tip and decorative element in brass, Black-Nickel finish. Black protective SEBS glides.
Swivel base for ARMCHAIRS
In metal, varnished polished Bronze colour anti-fingerprint finish, 360° swivel with return. Black protective SEBS glides.
The ottomans have 4 castors with 360° swivel, structure in nylon thermoplastic polyurethane rubber.
INFORMATION REGARDING PIPING WHEN IT IS DETERMINED BY THE COMPANY
- all-fabric upholstery version: the piping (eco-leather and/or eco-nabuk) will be contrasting but in the same colour family as the fabric; - all-leather upholstery version: piping will be in the same leather chosen for the upholstery. The piping is always made of eco-leather and/or eco-nabuk, except when the piece is completely upholstered in leather.

Modelos 2D

Las dimensiones indicadas en los archivos CAD pueden variar ligeramente respecto a las medidas que figuran en la ficha de producto. N.B.: los archivos CAD presentes en el sitio web están protegidos por derechos de autor y son propiedad exclusiva de Minotti SpA. La empresa solamente autoriza su uso en el ámbito del diseño de interiores. Se prohíbe terminantemente cualquier otro uso

TORII_BOLD.DWG

Modelos 3D

Las dimensiones indicadas en los archivos CAD pueden variar ligeramente respecto a las medidas que figuran en la ficha de producto. N.B.: los archivos CAD presentes en el sitio web están protegidos por derechos de autor y son propiedad exclusiva de Minotti SpA. La empresa solamente autoriza su uso en el ámbito del diseño de interiores. Se prohíbe terminantemente cualquier otro uso
